Accession No

3087

Brief Description

elevation/range plot for guns, by J. H. Steward, English, 1/2 20th Century

Origin

England; London

Maker

J. H. Steward

Class

military

Earliest Date

1900

Latest Date

1950

Inscription Date

Material

plastic (celluloid)

Dimensions

length 204mm; breadth 140mm

Special Collection

Steward collection

Provenance

Collection purchased from member of the Steward family, 1974.

Inscription

‘For Lewis & FOR VICKERS GUN AND MARK VII. S.A.A.’ (obverse and reverse)
‘Designed by Lieut. E. Bevins.
J.H. STEWARD. LONDON’ (bottom of reverse)

Description Notes

White celluloid rectangle.

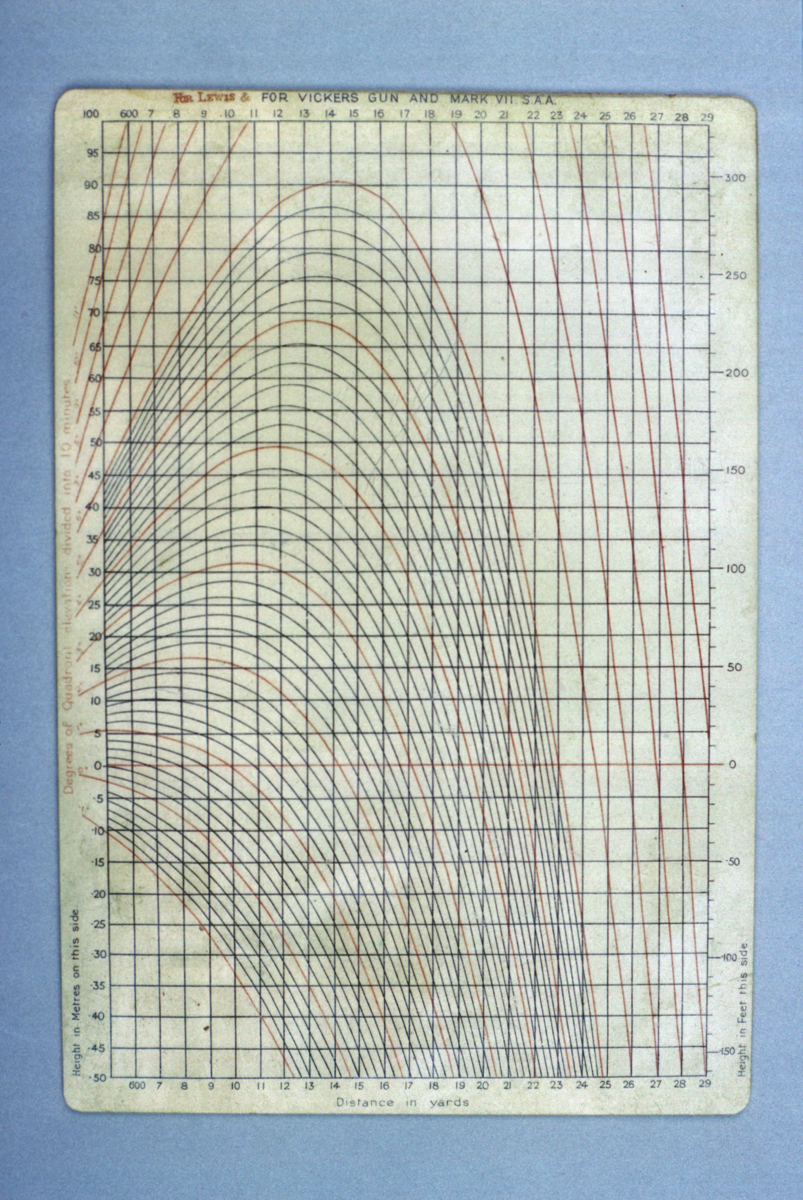

Obverse: plot of distance in yards against height (in feet and in metres), with curves showing ‘degrees of quadrant elevation divided into 10 minutes’. Vertical scale on left marked ‘height in metres’, divided -50 - 0 - 100, numbered by 5. Vertical scale on right marked ‘height in feet’, divided [-160] - 0 - [320], numbered by 50, subdivided to 10. Horizontal scale at top and bottom, marked ‘distance in yards’ (at bottom), divided [500] - 29[00] yards, numbered by 100 yards.

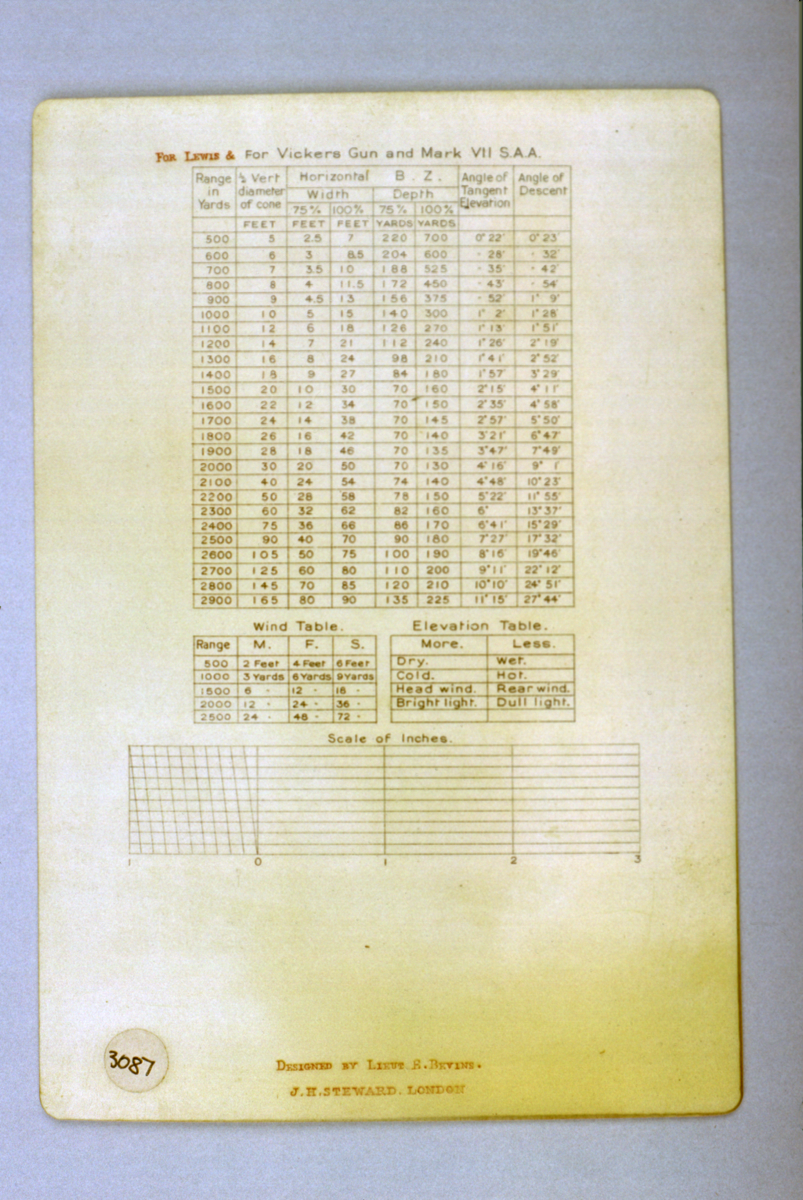

Reverse: range table, wind table and elevation table. Also ‘scale of inches’ divided 1 - 0 - 3, numbered by 1, first inch divided by transversal scale to hundredths.

Condition good (discoloured, very slight warping); complete.
