Description
An astrolabe is a model of the heavens with the earth placed at the centre. A section of the heavens is projected on to the astrolabe. The co-ordinates of stars and planets are depicted on a grid called the rete. The earth is represented by latitude plates of which there are more than one. This is because the movement of the stars depends upon the latitude of the place from where the observation is made. Cambridge has a latitude of 52°, Rome 42°, Madrid 41°, and Paris 49°. Each latitude plate has circles and lines engraved on them which include the tropic of Cancer and Capricorn, the equator and a twilight line. The rete and latitude plates are housed within the mather which has a raised edge called the limb. On European astrolabes the limb is engraved with a degree scale showing 0° to 360° and / or a scale of 24 equal hours.

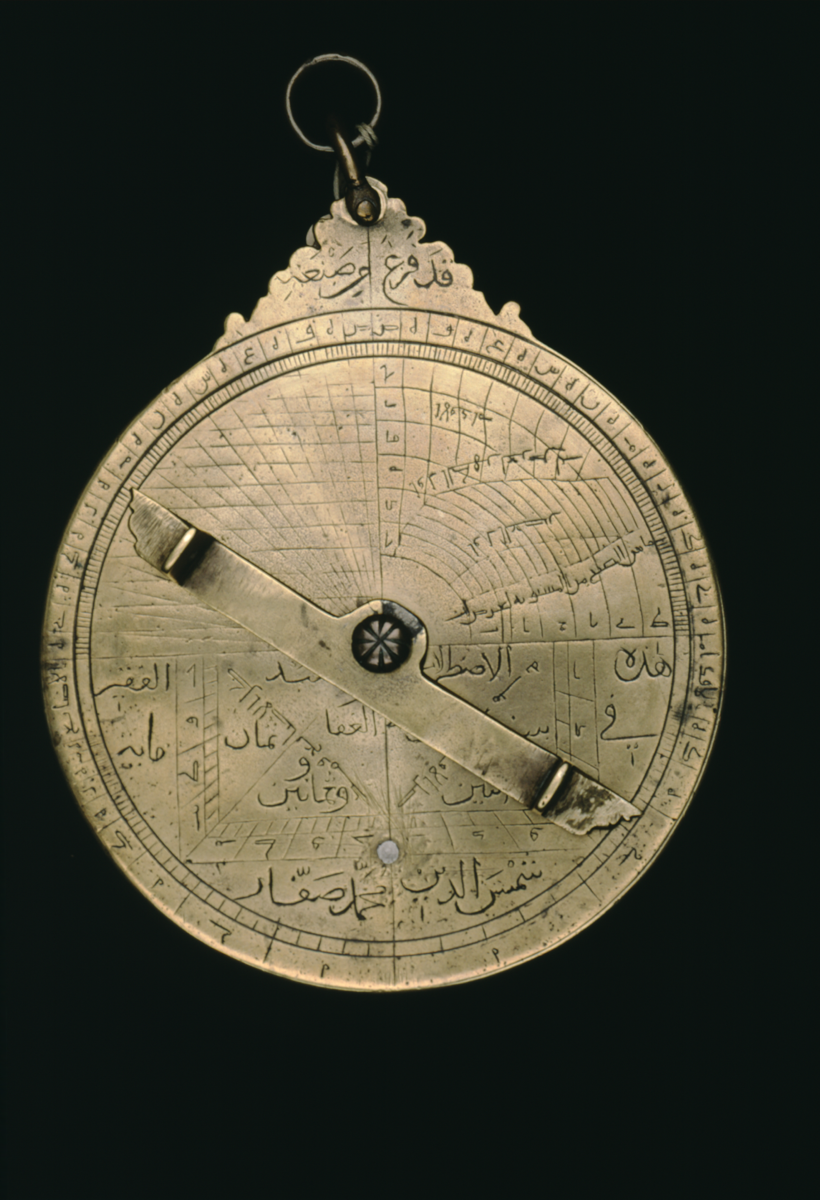

On the back of the astrolabe are engraved several scales including a calendar scale and a shadow square. On Islamic astrolabes extra scales and tables are engraved for finding the direction of Mecca (for times of prayer). At the back of the astrolabe is also the alidade (see diagram above). The alidade has sights through which an astronomer would take simple observations of the sun or of a particular star, to find the time of day or night. The sights can also be used for finding the heights of buildings, trees or hills.

From display label:

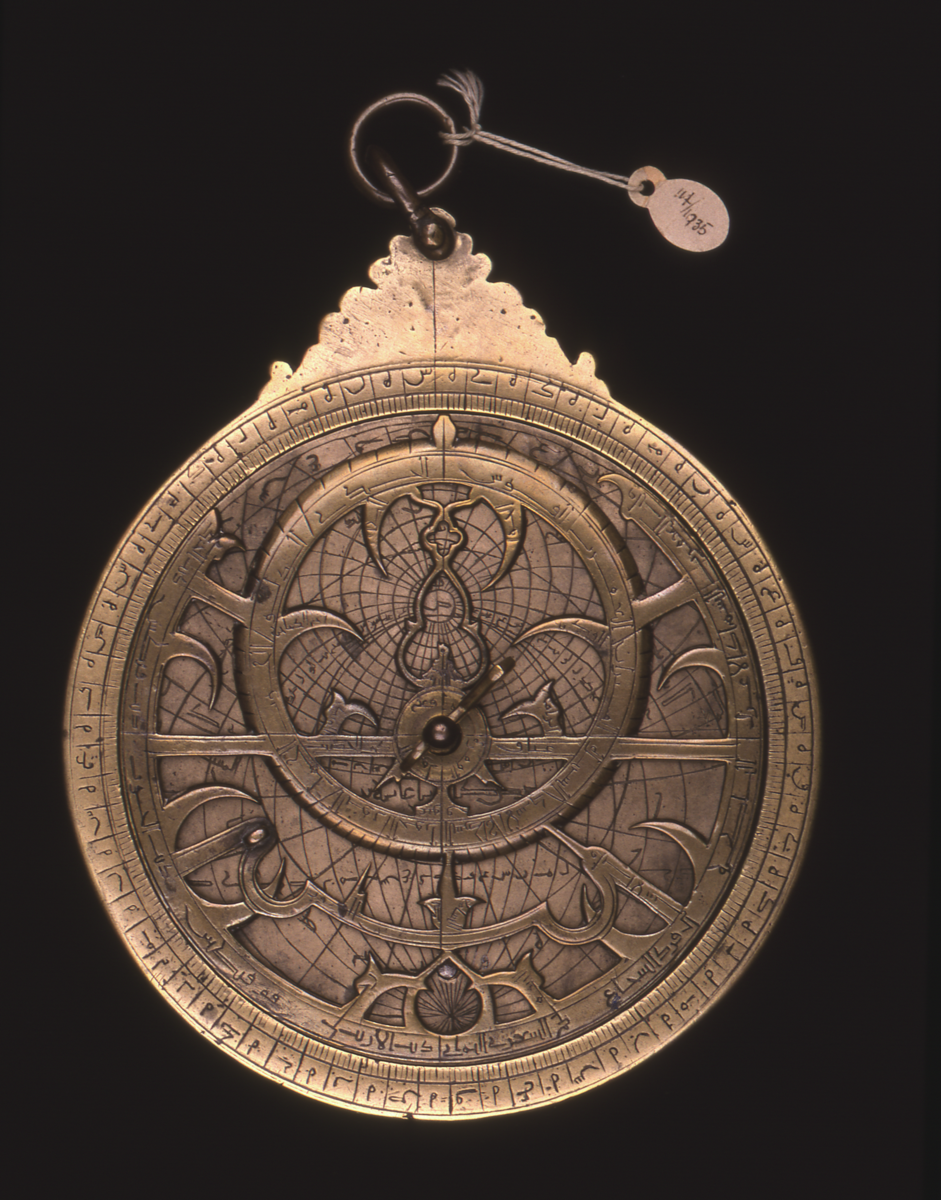

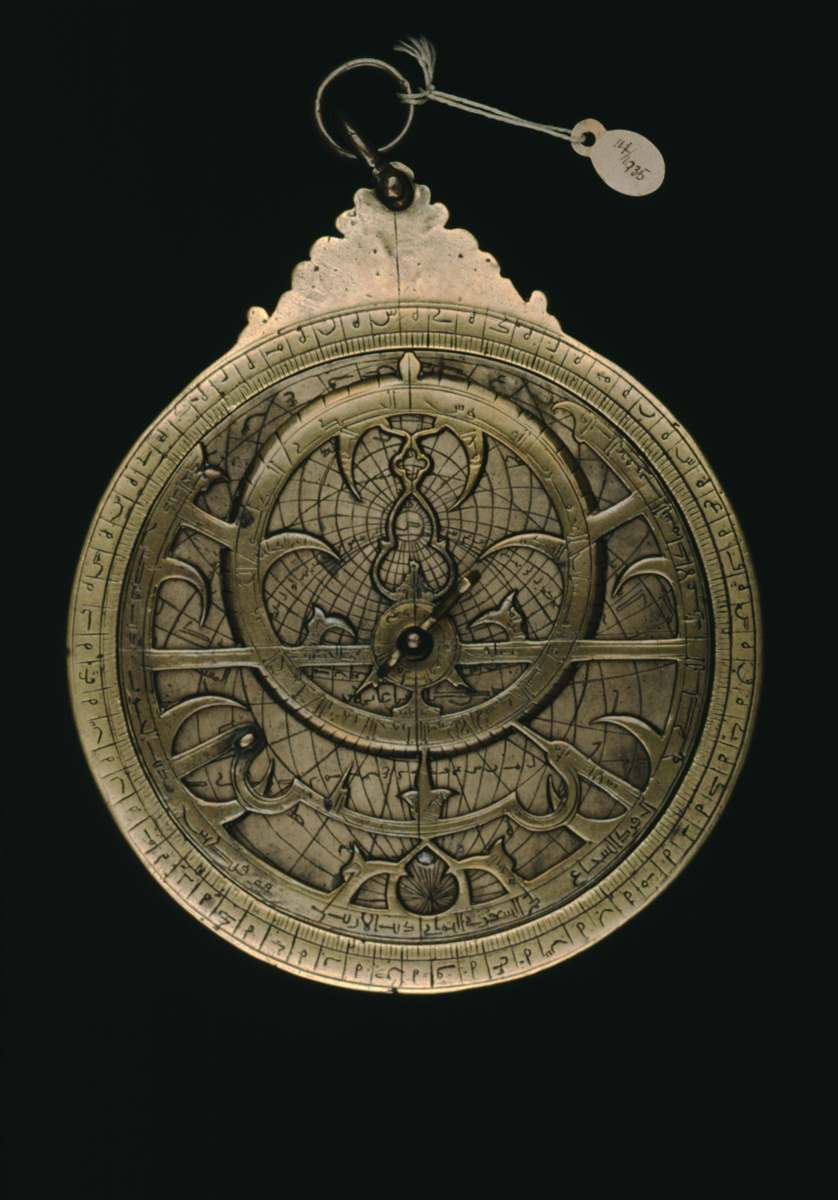

The astrolabe has five plates, and a rete marked with 21 stars. On the reverse of the mater are a sinical quadrant, horary quadrant, and a shadow square
