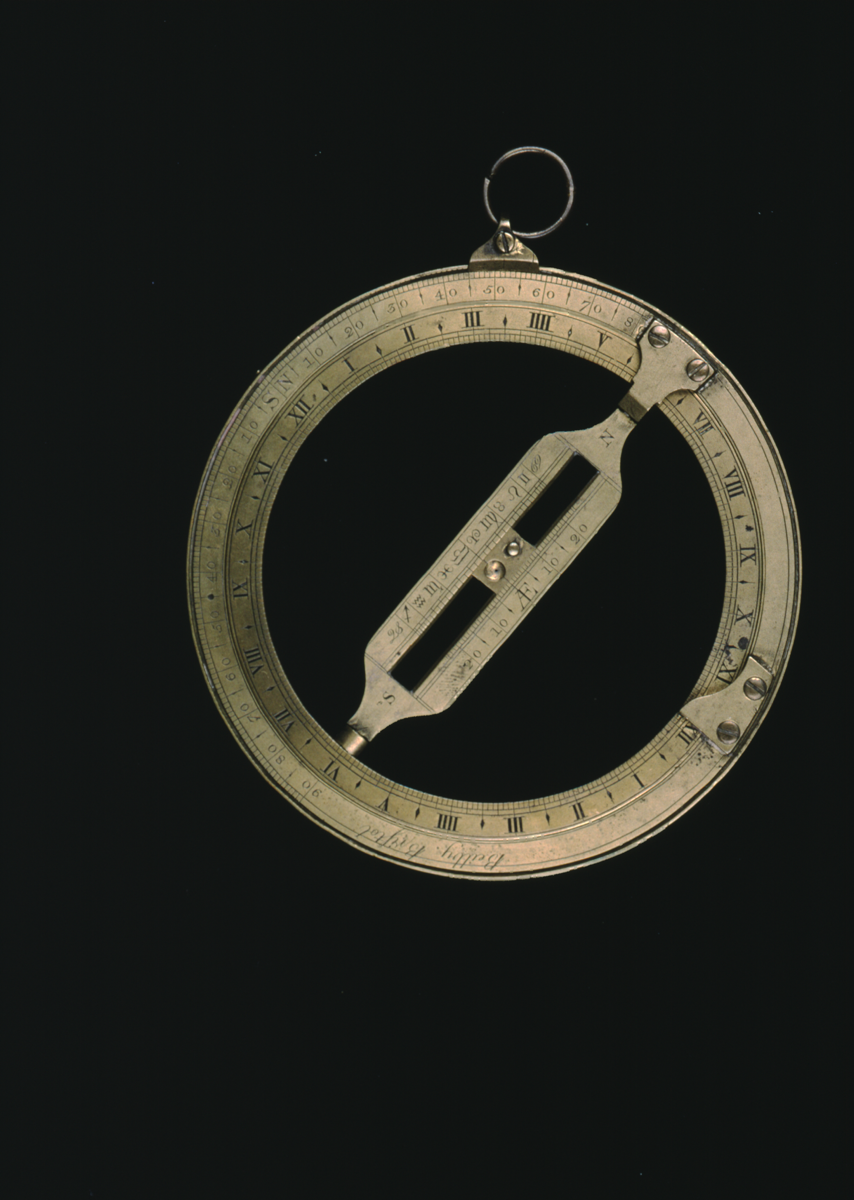

universal equinoctial ring dial by Beilby, 1/4 19th C
Origin
Bristol; England
Maker
Beilby
Class
dials
Earliest Date
1800
Latest Date
1825
Inscription Date
Material
metal (brass)
Dimensions
length 151 mm; diameter 125 mm
Special Collection
Fitzwilliam collection
Provenance
On loan from The Fitzwilliam Museum, University of Cambridge. Spencer George Percival Bequest, 1923.
Inscription

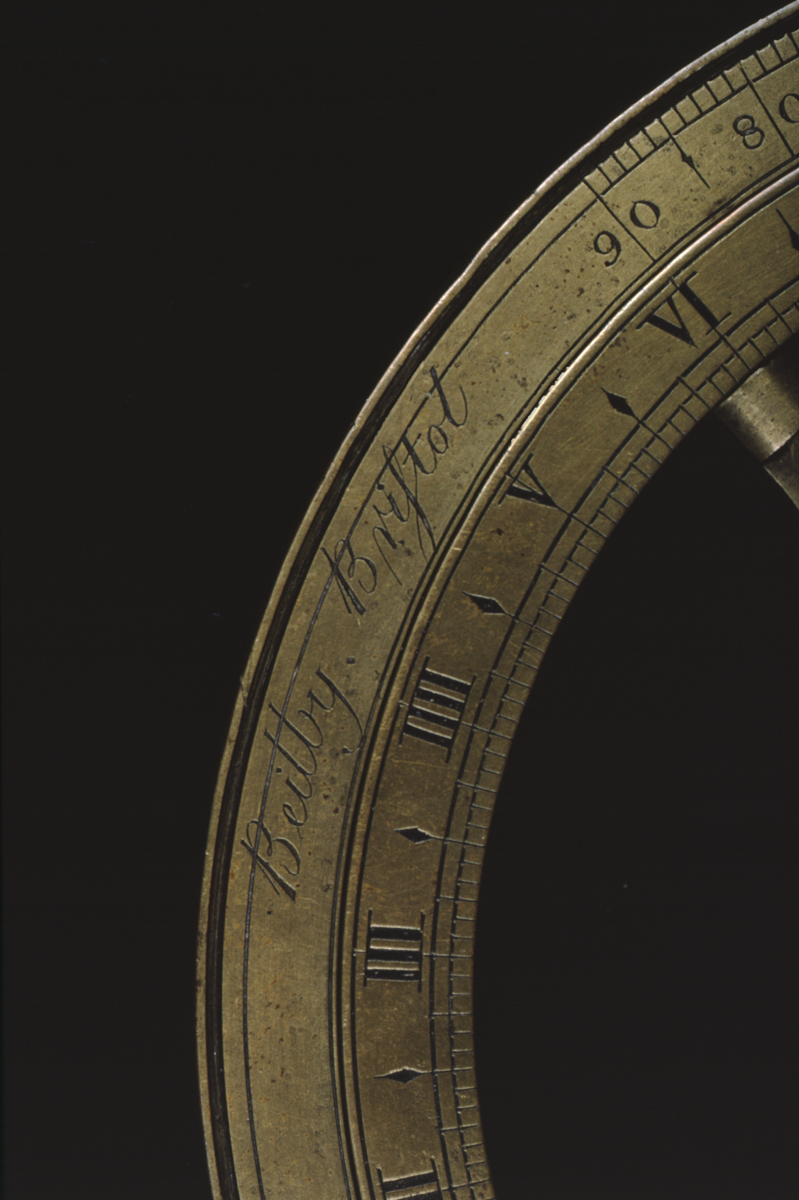

‘Beilby Bristol’ (obverse of meridian ring)
Description Notes
Meridian ring calibrated for all latitudes, divided 90˚ - 0 - [90˚] (0 marked ‘SN’), numbered by 10˚, subdivided to 1˚. Suspension shackle with brass suspension ring. Reverse carries altitude quadrant divided 0 - 90˚, numbered by 10˚, subdivided to 1˚. Equinoctial ring divided I - XII, I - XII, numbered by I, subdivided to 5 minutes; similarly divided on inner face. Pierced bridge with date scale divided to named (initialled) month, subdivided to 5 days; on reverse a zodiac scale divided to sign and subdivided to 5˚, also a declination scale divided [23˚ 30´] - Æ - [23˚ 30´], subdivided to 1˚ (1st Aries = 20 March). Marked ‘S’ and ‘N’ at either end of bridge. Sliding pinhole gnomon.
Condition: good/fair.
References
Events
Description
The universal equinoctial ring dial was designed by the English mathematician William Oughtred in the first half of the seventeenth century. It could be used at any latitude, so was a popular timekeeper for sailors and other travellers. It was really a much simplified version of the armillary sphere, only keeping the parts which were needed for telling the time.
The universal equinoctial ring dial consists of two rings and a bridging bar inside the inner ring. The outer ring represents a circle passing through the North and South celestial poles. The inner ring is called the ‘equinoctial’ ring because it represents the celestial equator. The bridging bar represents the axis of the world, just as the gnomon on an ordinary horizontal dial does. So the instrument is a very simple model of the heavens.
