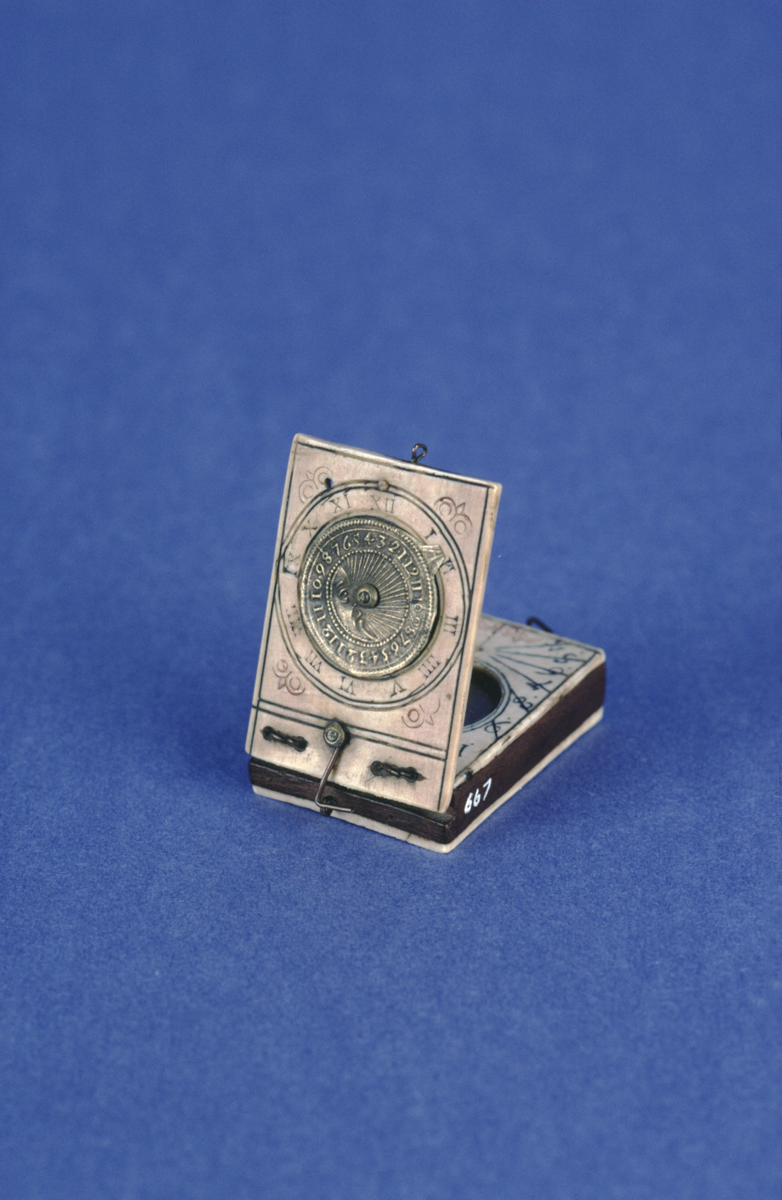

The Diptych dial is a common form of portable multi-function sundial. Diptych dials were made popular by the instrument makers in Nuremberg during the sixteenth and seventeenth centuries. They are usually made of ivory with brass fittings, and are often elaborately decorated. The name of the device derives from the Greek diptychos for a pair of folding writing tablets, which the instrument resembles.

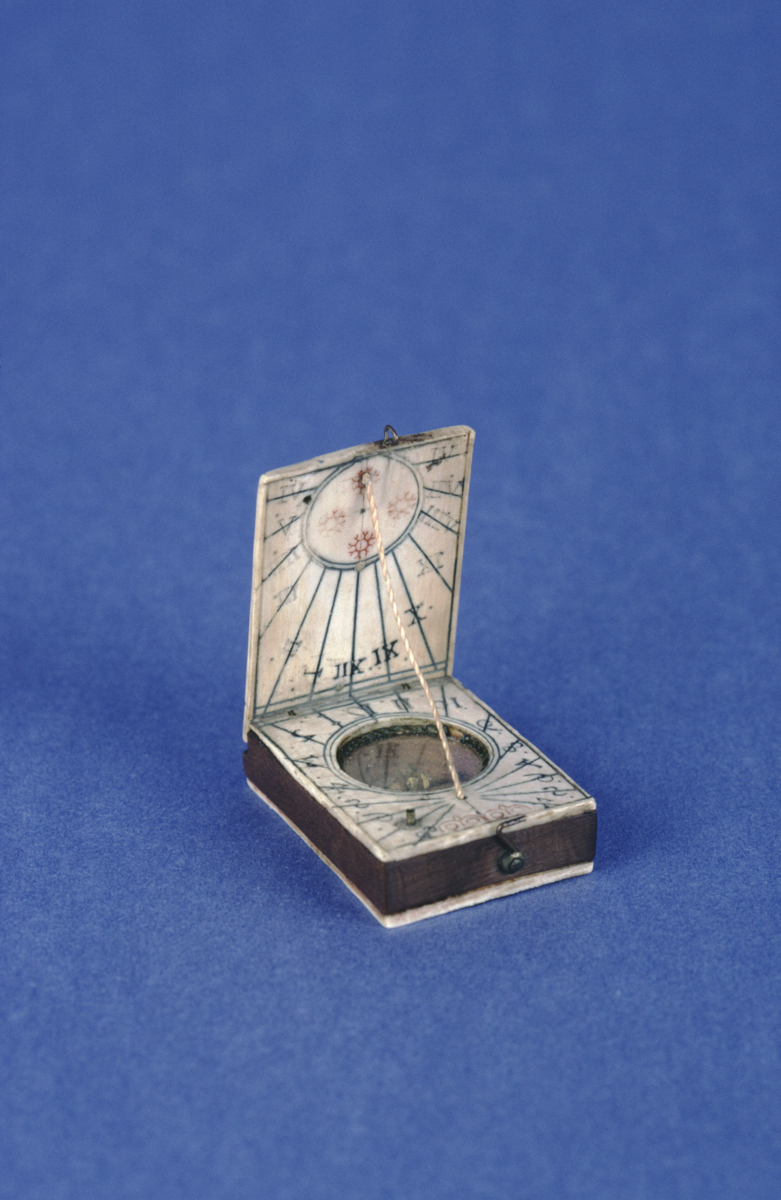

Diptych dials consist of two leaves hinged together, with a string ‘gnomon’ stretched between the inner surfaces of the leaves for casting a shadow. To use the device as a sundial the lower leaf must be placed parallel to the horizon and the upper leaf must be at a right angle vertically to it. The gnomon must then be aligned with the meridian of the place where it is being used by using the inbuilt magnetic compass. Time can then be read from the horizontal or vertical dial by the location of the shadow cast by the string gnomon.

In addition to the horizontal and vertical dials, diptych dials normally carry a number of other features, such as equinoctial dials, windroses, tables of latitude for adjusting the string gnomon for different locations, epact tables, lunar volvelles for telling time at night by the moon, and various pin-gnomon dials for telling the time according to Babylonian or Italian hours, or for calculating the position of the Sun in the zodiac.
